Tsheb Mounted Crane 10 Tuj

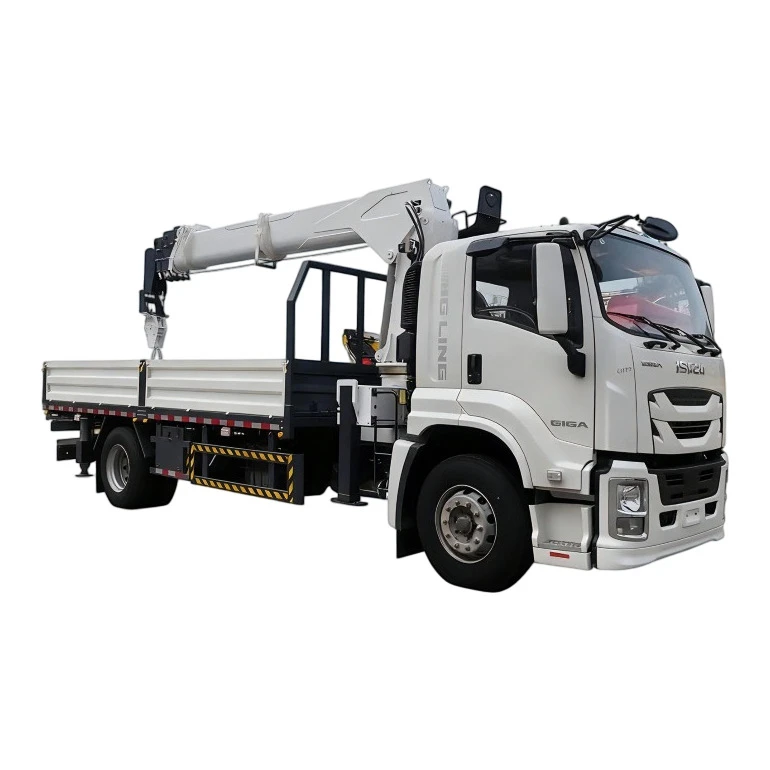

Lub tsheb mounted crane 10 tuj yog lub tsheb tshwj xeeb engineering raws li ISUZU GIGA series hnyav- lub luag haujlwm tsheb chassis, nruab nrog 10-tuj hydraulic nqa superstructure. Lub tsheb no muab cov kev thauj mus los thiab nqa kev ua haujlwm rau hauv ib lub tshuab, ua rau "tus kheej- thauj khoom, tus kheej- tshem tawm, tus kheej- thauj, thiab tus kheej- nqa" ua haujlwm. Powered los ntawm ISUZU 6HK1 los yog 6UZ1 series engines xa 240 mus rau 380 horsepower, nws yog dav siv nyob rau hauv kev tsim kho, logistics, kev tu hauv nroog, thiab kev ua haujlwm hnyav.

1. ISUZU GIGA Chassis-Ib qho kev ntseeg siab rau Hnyav-Kev Ua Haujlwm

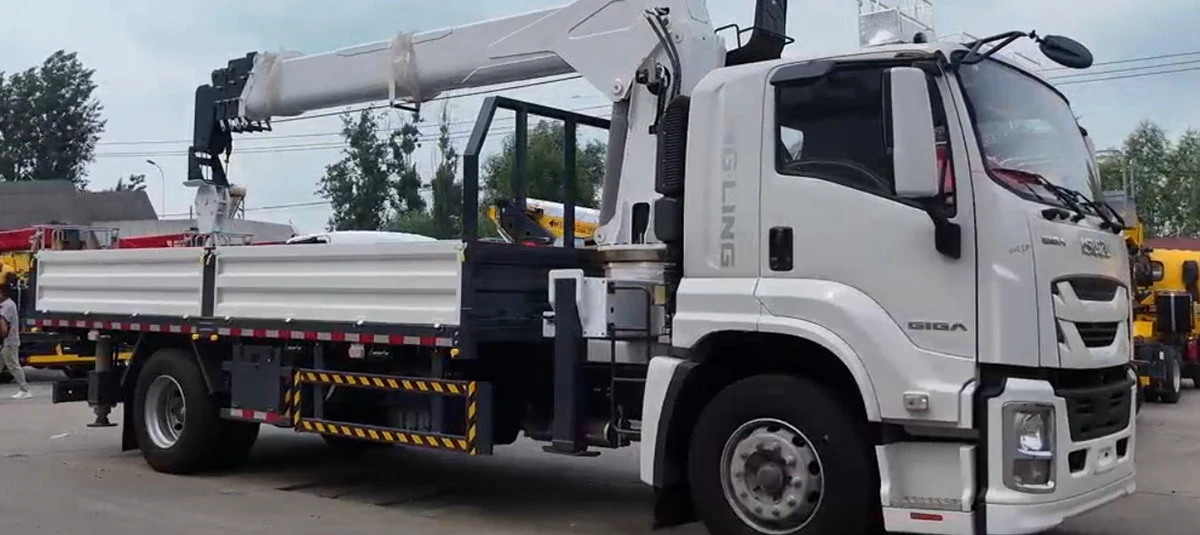

Lub 10-tuj ISUZU tsheb thauj khoom-mounted crane yog tsim los ntawm ISUZU GIGA hnyav-duty chassis, siv los ntawm ISUZU 6HK1 lossis 6UZ1-TCG61 diesel xyaw. Lub cav 6HK1 muab 240 HP (177 kW) nrog 9.726L hloov chaw thiab siab tshaj plaws torque ntawm 1460 N·m; 6UZ1-TCG61 cav muab 380 HP (279 kW) nrog siab tshaj plaws torque ntawm 1800 N·m. Cov cav ua raws li Euro 5 / Euro 6 emission qauv, muab lub zog muaj zog thiab kev lag luam roj zoo heev.

Chassis tsav configurations muaj xws li 4 × 2 thiab 6 × 4 kev xaiv. Lub 6 × 4 qauv yog nruab nrog 10+1 log tsheb (11.00R20), muab superior load peev xwm thiab tsav tsheb stability. FAST 8-ceev lossis ZF 8-ceev tsis siv neeg kis tau tus mob kom zoo thiab txhim khu kev qha fais fab tuag. ISUZU GIGA chassis paub txog nws lub neej kev pab cuam ntev thiab qis qis, tshwj xeeb tshaj yog haum rau kev xav tau, kev ua haujlwm siab.

2. 10-Tau Lifting Peev Xwm Rau Kev Ua Haujlwm Ntau Yam

Cov khoom siv no muaj 10-tuj hydraulic crane nrog lub peev xwm nqa ntawm 10,000 kg (ntawm 2.5m vojvoog). Qhov siab tshaj plaws nqa qhov siab ncav cuag 16.1-17.3 meters, nrog qhov siab tshaj plaws ua haujlwm ntawm 12.6-14 meters. 4-section telescopic boom nrog 360℃nruam slewing ua tau raws li ntau yam kev nqa hnyav xws li kev tsim kho steel, khoom siv, thiab chaw nres nkoj thauj khoom.

3. Hom thiab Boom Configuration xaiv tau yooj yim

Lub 10-tuj ISUZU tsheb-mounted crane tuaj yeem nruab nrog ntau hom crane raws li cov neeg siv khoom xav tau. PALFINGER yog lub npe nrov thoob ntiaj teb nrog Austrian technology thiab precision hydraulic systems; XCMG yog lub tuam txhab ua lag luam hauv tsev nrog paub tab K / M / G series thev naus laus zis; Sany Palfinger yog ib qho kev sib koom ua lag luam uas ntsuas kev ua tau zoo thiab tus nqi; Furukawa UNIC thiab HIAB yog cov neeg ua haujlwm Japanese / European kev tshaj lij crane cranes.

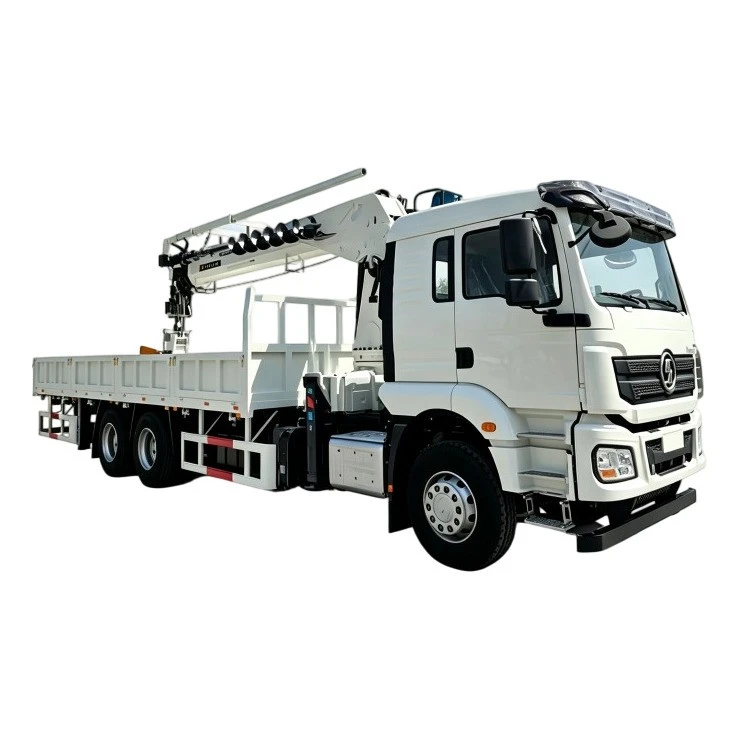

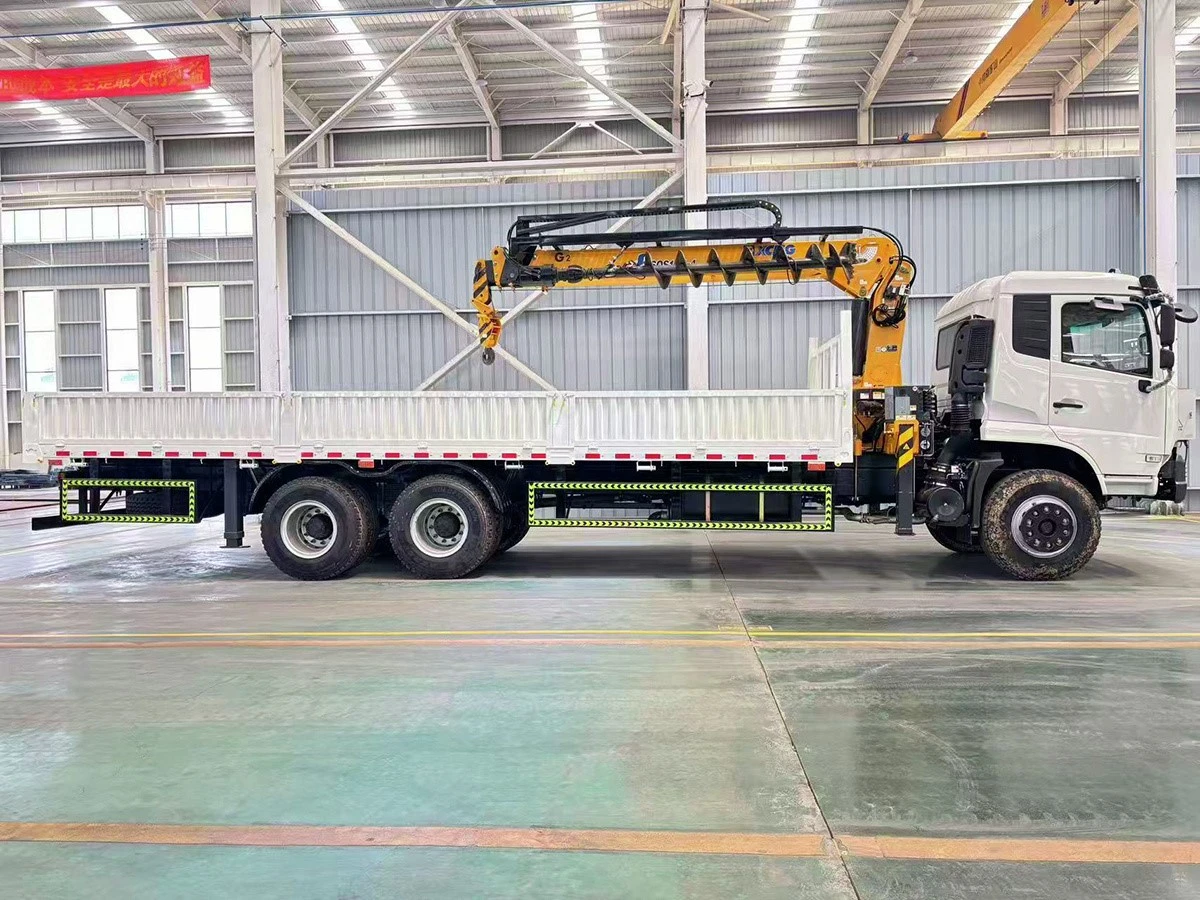

Boom configurations suav nrog telescopic (ncaj) booms rau ntsug lifting nrog cov qauv yooj yim thiab loj lifting lub sij hawm, thiab knuckle (folding) booms nrog compact folded loj thiab superior obstacles - hla kev muaj peev xwm rau qhov chaw kaw.

• Cav: A 4HK1-TCG60 diesel cav. Qhov no yog ib tug niaj hnub, 5.2-liter, turbocharged-intercooled engine ua 205 horsepower. Nws yog lub npe hu rau nws kev ntseeg siab thiab torque
• Gearbox: Ib qho Isuzu MLD-6Q phau ntawv kis. Qhov no yog 6-ceev gearbox

• Tyres: 295/80R22.5 18PR. Cov no yog cov log tsheb loj, kev lag luam tsheb. "18PR" (Ply Rating) qhia tias lub log tsheb muaj zog heev tuaj yeem tuav cov khoom hnyav
