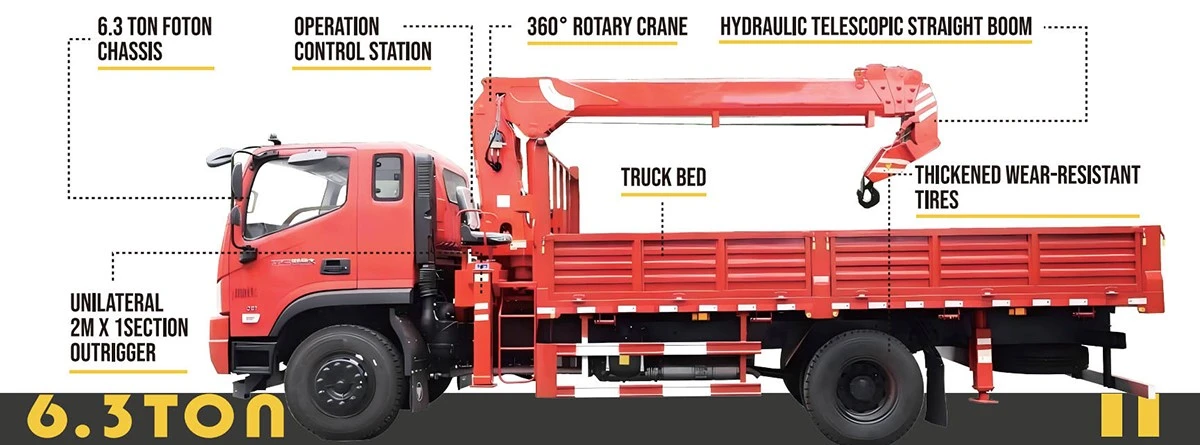

Tsheb Mounted Hydraulic Crane

Lub tsheb thauj khoom mounted hydraulic crane yog lub tshuab tshwj xeeb tsim los nqa thiab tuav cov khoom thauj, sib txuas cov tsheb thauj mus los nrog lub peev xwm nqa tau zoo. Mounted ntawm lub tsheb thauj khoom lag luam thiab siv los ntawm lub tsheb lub cav los ntawm lub zog nqa -tawm (PTO), cov cranes no muaj ntau yam kev daws teeb meem rau cov chaw tsim kho, chaw xa khoom, chaw siv hluav taws xob, thiab chaw tsim khoom. Featuring articulated los yog telescopic booms, lawv ua kom muaj txiaj ntsig kev thauj khoom, tshem tawm, thiab kev thauj khoom ncaj nraim nyob rau ntau qhov chaw ua haujlwm.

1. Mobility & Tus kheej -Kev Ua Haujlwm

Lub crane txuas ncaj qha mus rau lub tsheb thauj khoom lag luam, tso cai rau nws taug kev ntawm txoj kev pej xeem ntawm txoj kev loj thiab tuaj txog ntawm - qhov chaw npaj ua haujlwm. Tsim los ntawm lub tsheb lub cav ntawm PTO- tsav hydraulic twj, nws yuav tsum tsis muaj hluav taws xob sab nraud rau kev nqa cov haujlwm . Qhov no tus kheej - muaj cov qauv tsim tshem tawm qhov xav tau rau cov tsheb thauj mus los sib cais lossis kev teeb tsa crane tshwj xeeb.

2. Ob qhov Boom Configurations rau txawv xav tau

• Telescopic Boom: Muaj ntau yam -section, caj npab txuas ntxiv uas muab qhov siab tshaj plaws ntsug thiab kab rov tav nthuav dav. Hydraulic cylinders tswj lub boom lub telescoping seem, thaum lub winch thiab hlau hlua tuav hoisting. Zoo tagnrho rau cov chaw tsim kho, tsim cov haujlwm, thiab cov ntawv thov kom ncav cuag qhov tseem ceeb.
• Knuckle Boom (Articulating): Features folding, articulated caj npab uas muaj kev yooj yim dua nyob rau hauv qhov chaw kaw. Nws tuaj yeem nruab nrog ntau yam txuas xws li grapples lossis pob tawb. Qhov zoo tshaj plaws rau warehouses, forestry, thiab daim ntawv thov uas yuav tsum tau muab tso rau hauv qhov chaw nruj.

3. Tag nrho 360℃tig & Precise Control

Lub crane lub sab sauv qauv mounts ntawm ib tug slewing nplhaib, ua kom tas mus li 360-degree kev sib hloov. Lub peev xwm hloov pauv tag nrho no tso cai rau cov neeg ua haujlwm ua haujlwm rau cov khoom thauj hauv txhua qhov kev taw qhia yam tsis tau hloov lub tsheb, txuag lub sijhawm ntawm qhov chaw ua haujlwm tsis khoom.

4. Ntse Hydraulic & Tswj Systems

Cov tsheb thauj khoom niaj hnub no- cranes mounted siv load-sensing hydraulic systems kom du, proportional control. CAN-bus electronics thiab sensors saib xyuas qhov tseem ceeb tsis xws li lub kaum sab xis, qhov ntev, lub voj voog ua haujlwm, thiab qhov hnyav. Cov tshuab no tso tawm cov ntaub ntawv - lub sijhawm tiag tiag thiab muab cov lus ceeb toom tsis siv neeg overload thiab txwv kev tiv thaiv rau kev ua haujlwm nyab xeeb.

5. Cov Txheej Txheem Kev Nyab Xeeb Zoo

Kev nyab xeeb yog qhov tseem ceeb hauv kev ua haujlwm crane. Standard kev ruaj ntseg nta muaj xws li:

Hydraulic System

Lub tshuab hydraulic yog lub plawv ntawm lub crane, hloov lub zog ntawm lub cav mus rau hauv lub zog nqa. PTO tsav lub twj tso kua mis hydraulic (ib zaug lossis dual) uas ua rau cov kua dej hydraulic. Cov kua dej no yog qhia los ntawm kev tswj li qub rau ntau yam actuators. Cov khoom tseem ceeb muaj xws li:

• Hydraulic Pump: Hloov lub zog txhua yam rau hydraulic siab
• Tswj Valves: Cov kua dej ncaj qha mus rau lub tog raj kheej thiab lub cev muaj zog

• Hydraulic Lub tog raj kheej: Nqa lub boom, txuas cov seem telescopic, thiab xa tawm cov khoom tawm

• Hydraulic Motors: Fais fab lub winch thiab kev sib hloov mechanism
